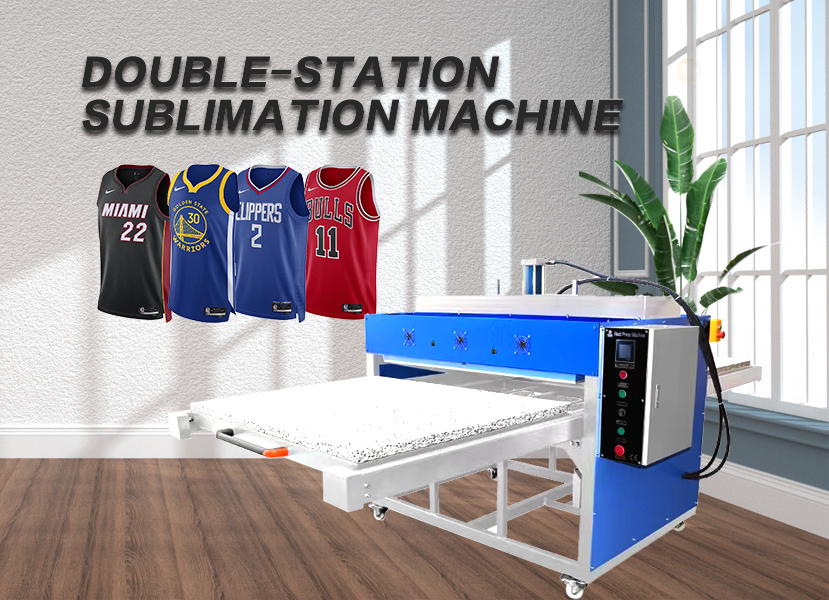

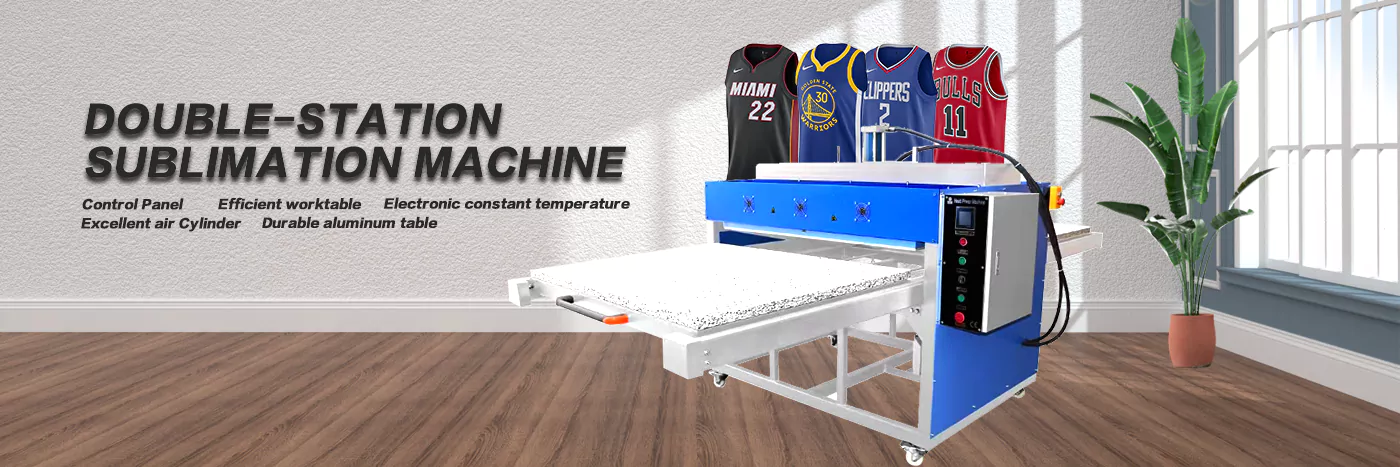

Colorwin's machine is a dual station sublimation machine.The worktable is a double-sided pull-out type,which is labor-saving in operation and fast in acceptance.Electronic time control,high accuracy;automatic temperature control timing,adjustable pressure.Hydraulic type, adjustable pressure up to 30kg/cm'; electronic digital constant tempetrature control, high accuracy (±1-2°C).It can be applied to clothing stores, manufacturing plants, household, retail, printing stores, advertising companies, etc. .
Efficient worktable
The worktable is a double-sided pull-out type, which is used alternately before and after, and is printed in turn.
Control Panel
LCD touch screen can control temperature and have a recording function.
Excellent air Cylinder
The airl cylinder can prevents air leakage, strong power and extend service life.
Electronic constant temperature
Electronic digital constant temperature control,high accuracy (±1-2C).
Durable aluminum table
The heating plate is thickened, not deformed, and has a long service life.
Pressure operation
Adopting pneumatic type, the pressure can be adjusted up to 30kg/cm².
APPLICATION
| Specifications | Power(kw) | Voltage(v) | Timerange(s) | Temperaturerange(℃) | Wrkingpressure(kg/cm²) | Paxking size(cm) |
| 70*90 | 9 | 220/380 | 0-999 | 0-399 | 0-30 | 140*83*147 |
| 80*100 | 10.5 | 220/380 | 0-999 | 0-399 | 0-30 | 150*93*150 |
| 85*165 | 13.5 | 220/380 | 0-999 | 0-399 | 0-30 | 215*100*150 |
| 100*120 | 15.3 | 220/380 | 0-999 | 0-399 | 0-30 | 170*113*151 |
| 130*130 | 17.7 | 220/380 | 0-999 | 0-399 | 0-30 | 180*143*155 |
| 120*150 | 21.5 | 220/380 | 0-999 | 0-399 | 0-30 | 200*132*152 |
