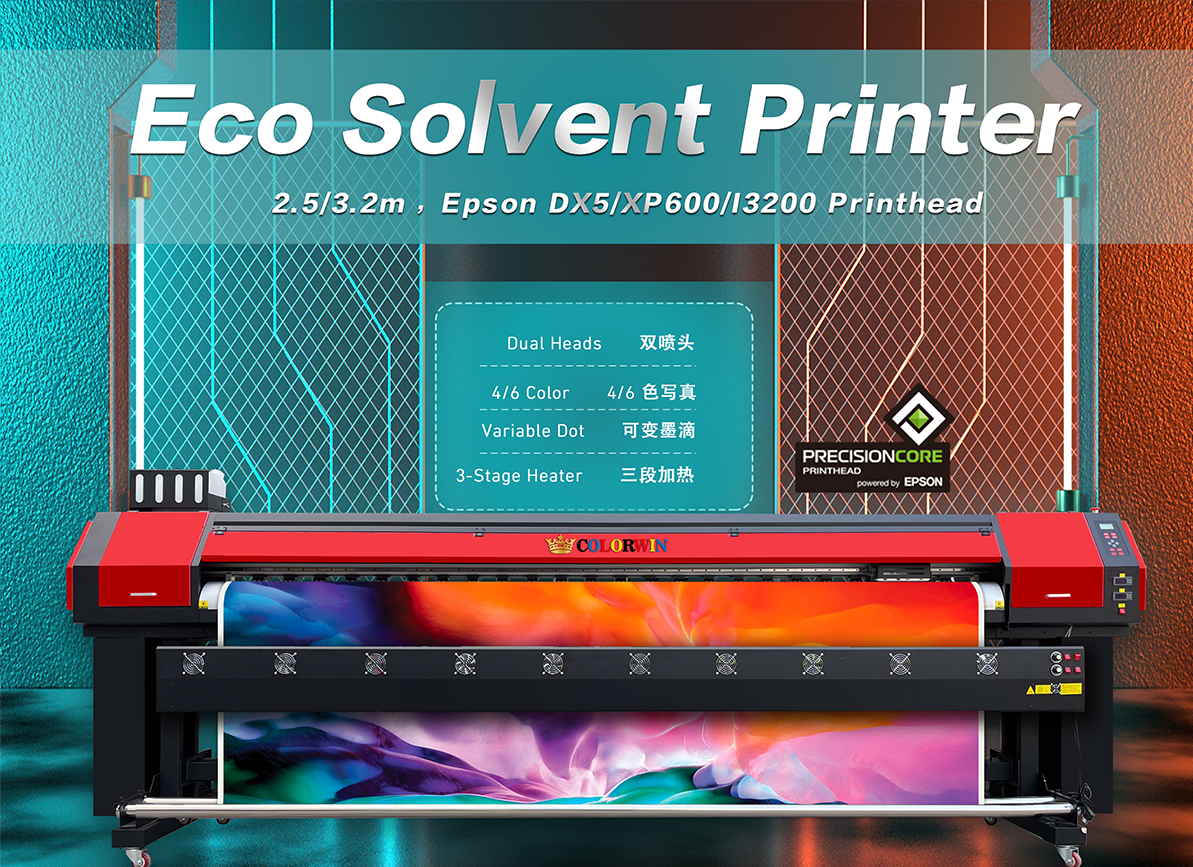

Epson DX5,XP600, i3200 printheads available. Meet the requirement of different clients.
Big Functional Control Panel
Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.
Integrated Temperature Control
Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.
High Quality Branded Guide Rail
Build for long life use and high precision carriage movement.
Wide Pinch Roller
Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.
Megadyne Belt. High quality. Durable
IGUS Drag Chain from Germany
IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level. Effectively protect ink tube and cables
Anti-collision Function
Anti-collision system is equipped to protect the printhead and carriage all the time
Heating and Drying System
Front and middle and rear heating system, frond drying fan are standard equipped to help dry the printed material fast.
Smooth winding
Double steel pipe constant force high precision cloth feeding system, to ensure the continuous smooth transmission of paper.
Ink station
Automatic up&down ink station, automatic cleaning closed heads nozzles, so that the heads nozzles are always in good condition.
Large capacity ink supply
Intelligent ink supply system, constant liquid level, to ensure high speed and high output of printing ink, capacity up to 1000ml.
APPLICATION
| Model NO. | W2512 | W3212 | |||
| Printhead | 2 Epson XP600/DX5/I3200 heads | ||||
| Resolution(dpi) | 2880dpi | ||||
| Media | Width | 2.5m | 3.2m | ||
| Types | Flex Banner, Vinyl, One Way Vision, Banner Cloth, Window Film, Mesh… | ||||
| Speed | Draft | 40 sqm/h | 20 sqm/h | ||
| Standard | 20 sqm/h | 15 sqm/h | |||
| Quality | 15 sqm/h | 10 sqm/h | |||
| Ink Color | CMYK | CMYK | |||
| Ink Type | Eco Solvent Ink | ||||
| Ink Droplet | 1.5-21pl Variable | ||||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||||
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) | ||||
| Environment | Temperature: 20-28°C, Humidity: 40-60% | ||||
| Rip Software | Maintop (Standard) / PhotoPrint (Optional) | ||||
| Interface | USB3.0 | ||||
| Power | Machine 50/60HZ, 110/220V, 2500W | ||||
| Packing size/weight | 3820x740x760mm/400kg | 4420x740x760mm/450kg | |||
