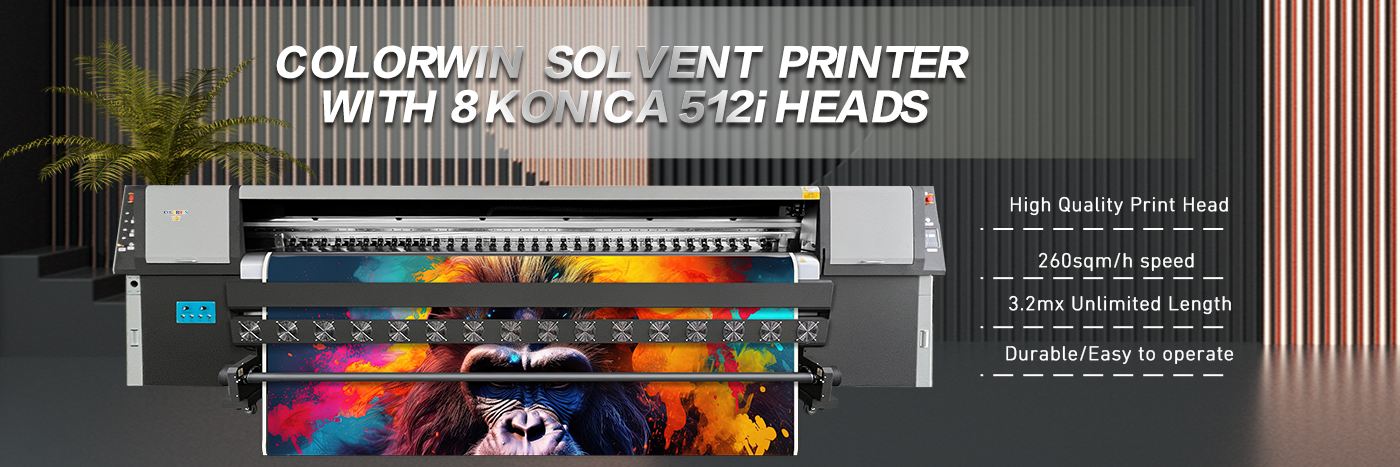

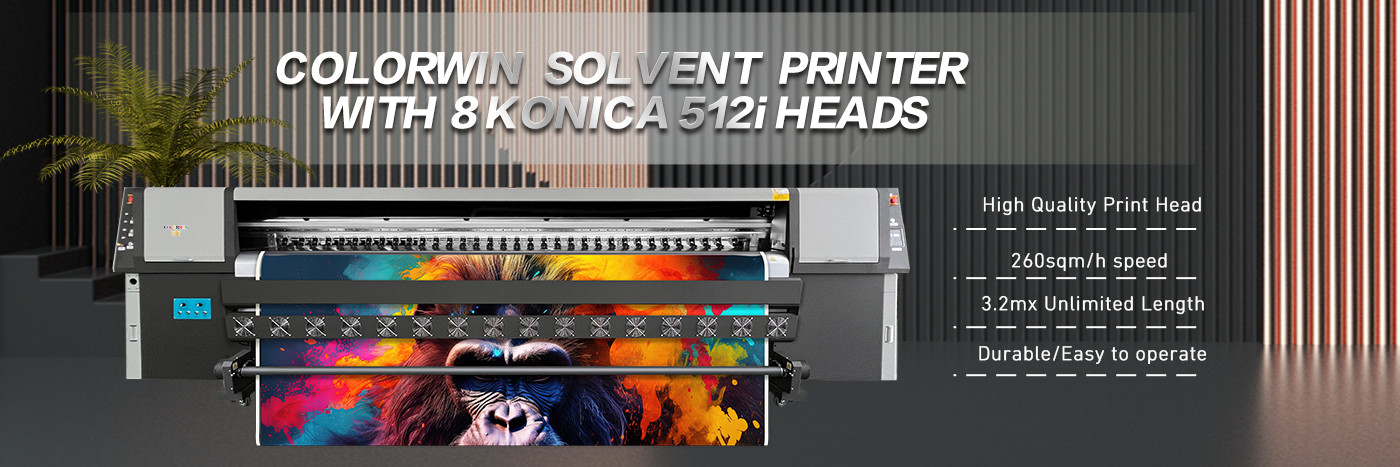

But that's not all. Our Colorwin Solvent printer is not just about speed and resolution, it is about pushing the boundaries of what is possible for banner printing. With innovative Konica 1024i/Konica 512i print heads, experience an ultra fast printing speed of up to 260sqm/h, and every print is a clear and vibrant masterpiece. With our printer, you can offer stunning products that attract your audience and leave a lasting impression. Use Colorwin Solvent printer now to change your product printing experience. Explore the true combination of speed and resolution.
Specialized Print Adsorption Platform
The control area of the vacuum adsorption platform ensures printing stability efficiently.
High Performance Board
High-end board system with good stability and low failure rate.
Efficient Emergency Stop Switch
Quickly turn off power in emergency situations to ensure work safety.
Industrial Grade Motor
High-quality industrial motor drive system ensures the accuracy and stability of equipment.
Humanized Key Panel
Easy to understand operation button panel, convenient to use.
Neat Head Shelf
Neat placement of the head shelf rest，more precise, more stable, to ensure long-termPrint accurately.
APPLICATION
Printing Mode | One Group | Two Group | Three Group | |
Konica1024i | 360X360dpi(1pass) | 250m²/h | 500m²/h | N/A |
360X720dpi(2pass) | 150m²/h | 260m²/h | N/A | |
360X1080dpi(3pass) | 120m²/h | 130m²/h | N/A | |
Konica 512i | 360X360dpi(2pass) | 130m²/h | 260m²/h | N/A |
360X480dpi(3pass) | 90m²/h | 180m²/h | N/A | |
480X540dpi(3pass) | 45m²/h | 90m²/h | N/A | |
Print Head Quantity | Konica 1024i(4-8)Pcs Optional Konica 512i(4-8)Pcs Optional | Media Type | Outdoor Solvent/Eco-solvent Based RollMedia (Vinyl,Leather.Artificial,Leather etc） | |
Printing Width | 3.2mx Unlimited Length | Operation Environment | Temperature 20-30℃ Humidity 60-70% | |
Printing Thickness | ≤5mm | Power Supply | AC 220V,50HZ±10%,UPS is required | |
Lamp | LED UV Lamp | Ink | Solvent Ink C·M·Y·K | |
Image Format | TIFF/JPG/EPS/PDF | Packing Size /APP Size | L/W/H 5150mm*1150mm*1500mm /4942mm*960mm*1370mm | |
RiP Software | Maintop(Standard)/Photoprint(Optional) | Computer Configuration | System:Win7/8/10 64bits(Professional/Version) CPU:≥Inteli5RAM:8GB Hard Disk:SATA500G Hard Disk Format:NTFS CD Rom:DVD Recordable Spacefor Disk C;100GB at least | |
Power | 5000W | G.W./N.W. | 1350kg/1200kg | |
