30cm/60cm DTF Printer
Occupy small space in the office .

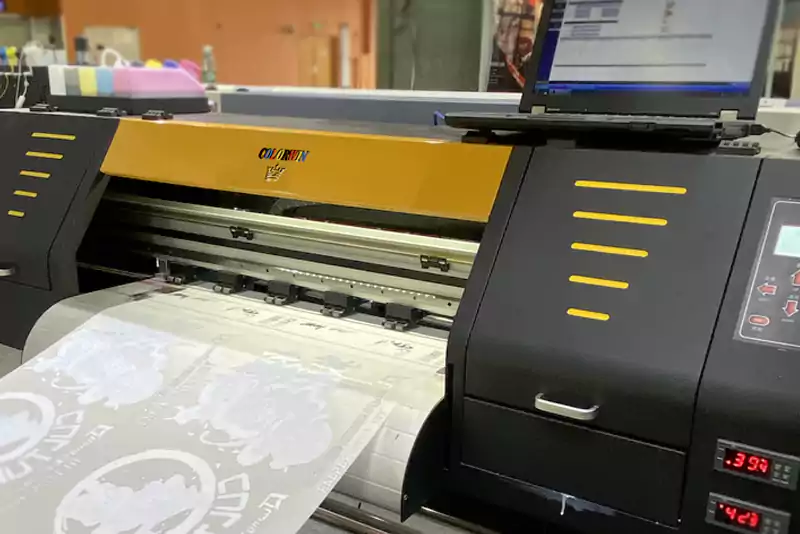

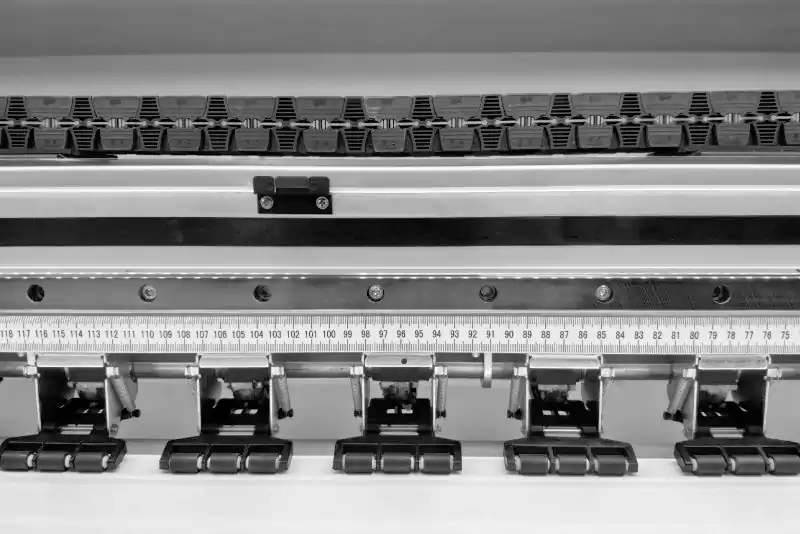

Wide Pinch Roller
Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

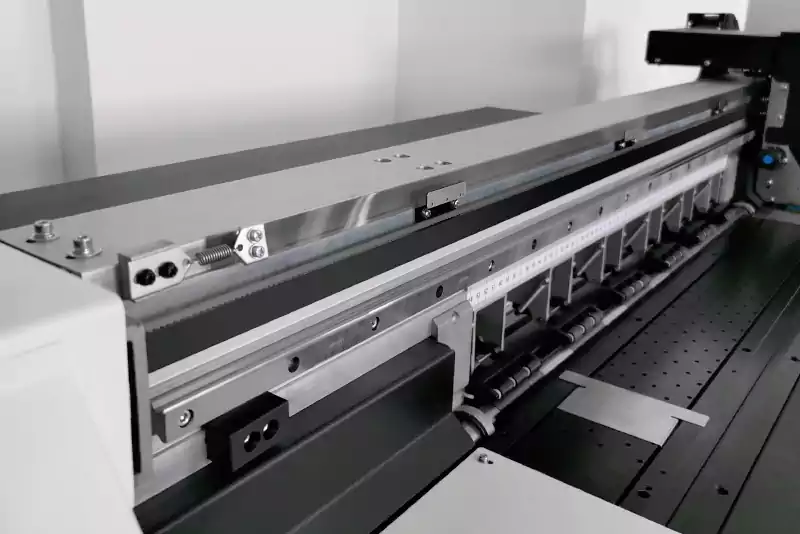

One-time mold aluminum carriage beam
Ensure high accuracy of carriage movement.

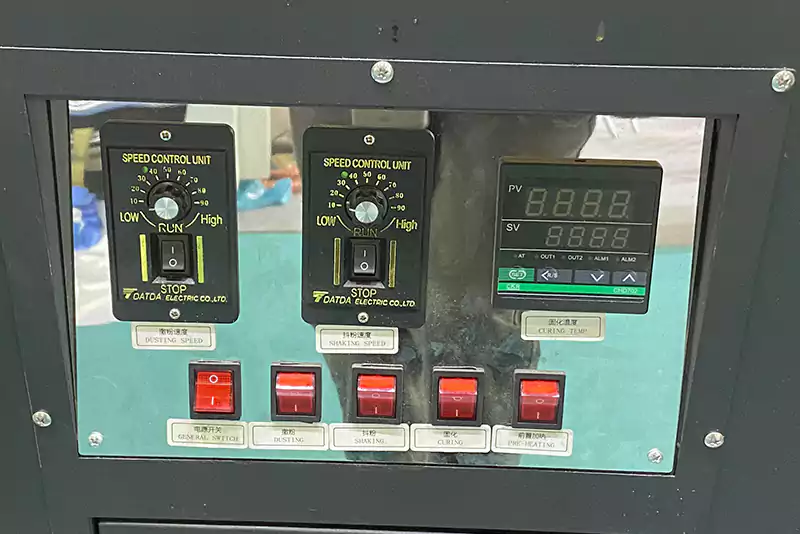

Drying and Heating System
Front and rear heating system and front drying fan are standard equipped to help dry the printed material fast.

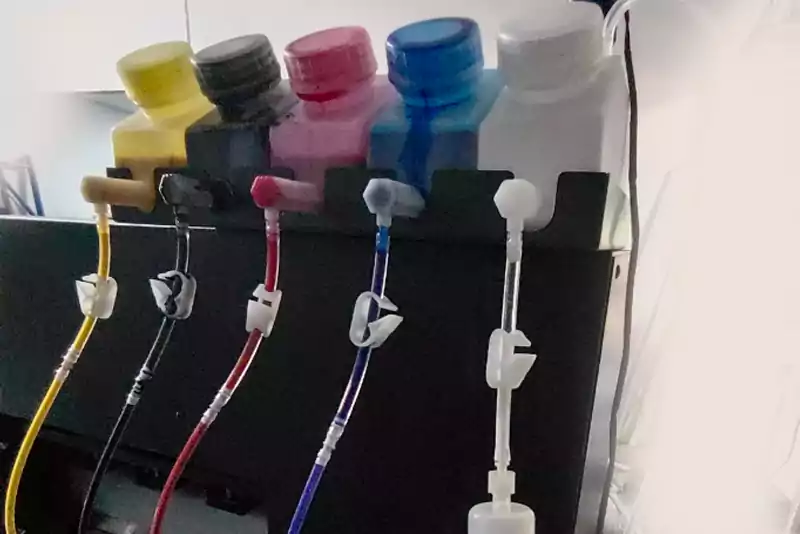

INK PUMP
Textile pigment ink: this ink have CMYK and white color, it's directly print on Centrifugal film, and work with a duster machine to work, then heat transfer the design on the garment.

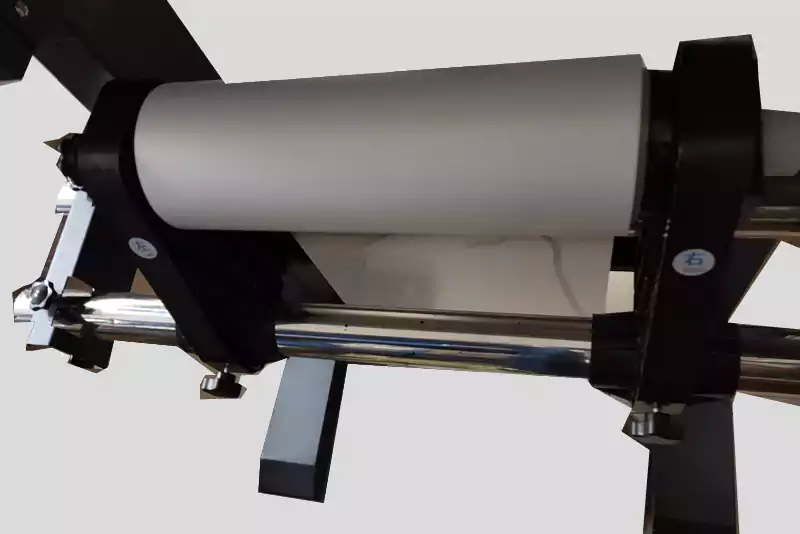

AUTOMATIC TAKING AND FEEDING SYSTEM
No need to use the vinyl cutter. this is new technology, It saves labor and complicated processes, more easy to operate.

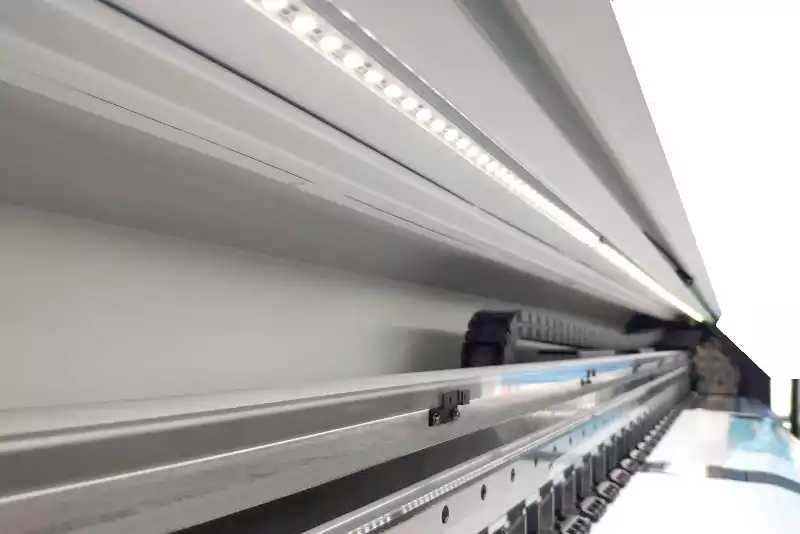

LED lamp strip equipped
Uses could check out the print result more easily.

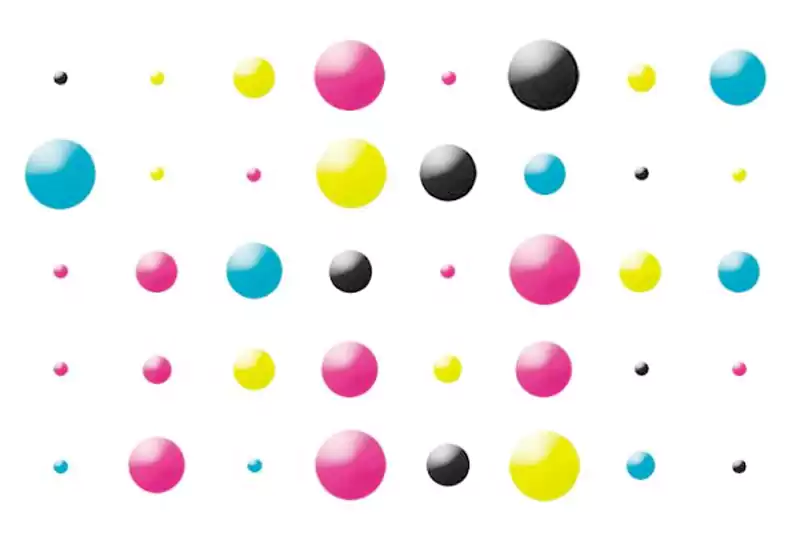

Variable Dot Print Technology
Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes.
APPLICATION
| W300 | W600 | ||||
| Printhead | 2 Epson XP600/DX5/I3200 heads | ||||
| Resolution(dpi) | 2880dpi | 2880dpi | |||
| Media | Width | 30cm | 60cm | ||
| Types | PET film | ||||
| Speed | 4 pass | 10 sqm/h | 15 sqm/h | ||
| 6 pass | 8 sqm/h | 10 sqm/h | |||
| 8 pass | 4 sqm/h | 8 sqm/h | |||
| Ink Color | CMYK+W | CMYK+W | |||
| Ink Type | DTF Ink | ||||
| Ink Droplet | 1.5-21pl Variable | ||||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||||
| Feed & Take Up | Automatic Media Feeding (Standard) | ||||
| Environment | Temperature: 20-28°C, Humidity: 40-60% | ||||
| Rip Software | Maintop (Standard) / PhotoPrint (Optional) | ||||
| Interface | USB3.0 | ||||
| Power | Machine 50/60HZ, 110/220V, 1200W | ||||
| Packing Size & Weight | 1200x730x630mm / 54 KG ; 680X610X710mm/53kg | 1800x730x630mm / 100 KG; 1350x930x1250mm/90kg | |||
