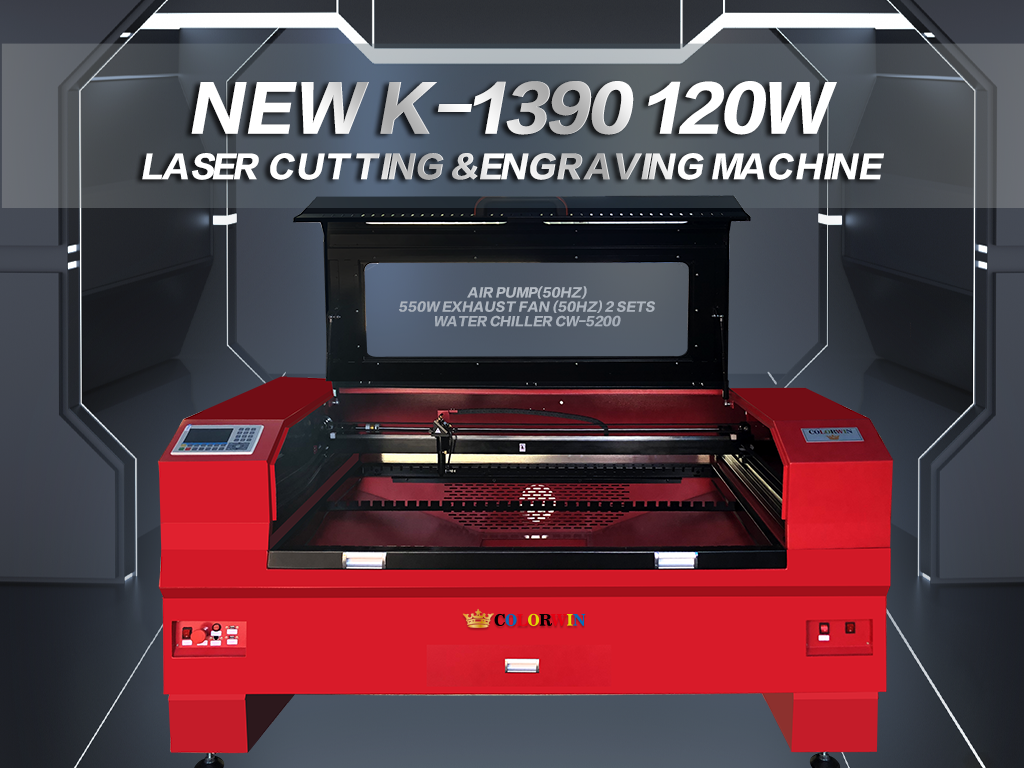

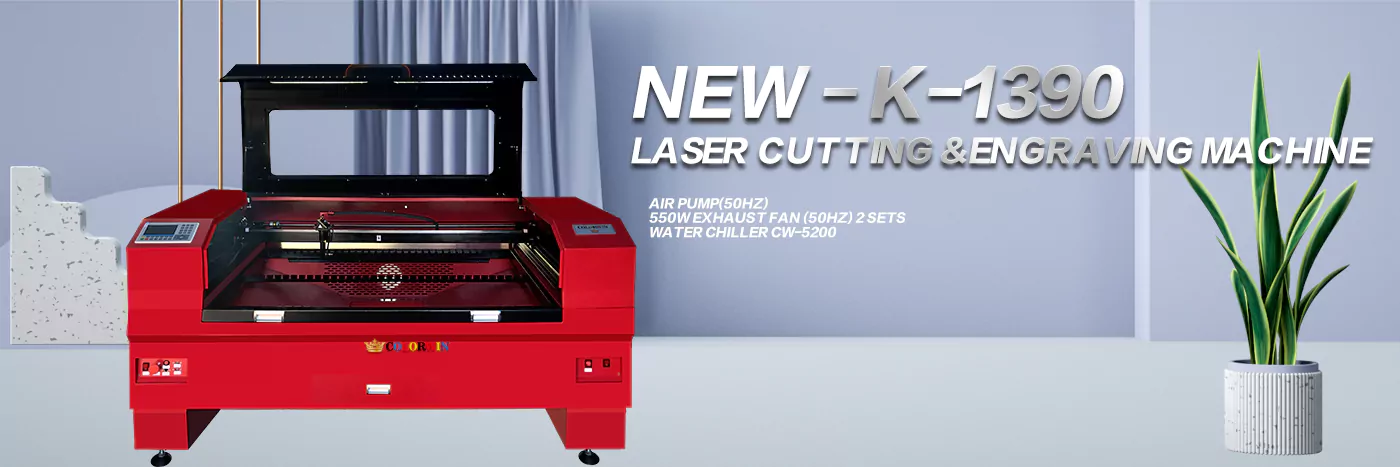

Colorwin High Performance K-1390120W Laser Cutting and Engraving Machine, which uses high-quality glass tube lasers and is suitable for non-metallic materials such as wood, paper, leather, fabric, organic glass, resin, acrylic, wool, plastic, rubber, ceramics, ceramic tiles, crystals, jade, bamboo, etc.
High quality laser head
Use the high quality metal, which make the laser head more strong and not easy to be broken by the smell and the fire.
Precision linear guide
Belt transmission with imported linear guide rail, to ensure the equipment running accurately.
Multilingual control panel
Chinese&English version liquid display can make it easy for user to operate.
Multifunction switch interface
Support U disk,USB cable,Internet, three transmission mode,1GB of memory,can store more than 800 files.
Large capacity workbench
The workbench is 900 * 600mm, and for the machine, it can hold longer edge materials.
Neat circuit board
Constant current regulator power supply components
APPLICATION
| Parts | Descriptions | Remarks |
| Laser Power | 120W/150w | CHENGDU WEESON |
| Laser Type | glass tube | Made in China |
| Working voltage | AC 220v 50hz | |
| Working Area | 1300 ×900mm | Model:K1390 |
| Platform | Alumium Bladeplatform | Heavy load available |
| Positioning Accuracy | < 0.01 mm | |
| Working temperature | 5℃～35℃ | |
| Motor and Driver | Stepper motor | Leadshine |
| Transmission | Belt transmission with imported linear guide rail | |
| Cutting thickness | <25mm Acrylic | |
| Power supply | AC220±10%.50Hz | |
| Gross power | <1800W | |
| Net weight | 450KG | Gross weight: 600KG |
| Dimension | 1900*1530*1100mm | Dimension:1970*1640*1180mm |
| Input Port | USB port | For both flash disk offline working Or directly connect to PC |
| Standard accessories | Air pump(50HZ) 550W Exhaust fan (50HZ) 2 Sets Water chiller CW-5200 | To assist cutting and aiming, Blow smoke and dust away. For laser tube cooling down |
| Software | LaserWork | Powerful software with plugin for AutoCAD andCorelDraw |
| Delivery Date | 5 working days | Including producing,debugging and supervision |
| Suitable materials: Wood,paper,leather,cloth,organicglass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo and other non-metallic materials. | ||
